OPEN BOX Tri-Y Collector 4-2-1 Fab Tri-Y Header Pro Race Merge 2.5" Outlet

This is a Universal 4-2-1 Tri-Y Merge Collector.

High quality stainless steel.  Mandrel Bends.  Hand TIG welds.

Specification:  20" Length  / 2.0" Inlet  / 2.5" Outlet

Total length is 20"

The pipe off the Tri-Y is 2.0"

And the collector outlet is 2.5"

Measurement is OD (Outer Diameter)  - Inner Diameter takes out about 0.1"

Collector flange is a 2-bolt exhaust flange, measures 4.5" on bolt hole (center to center.)

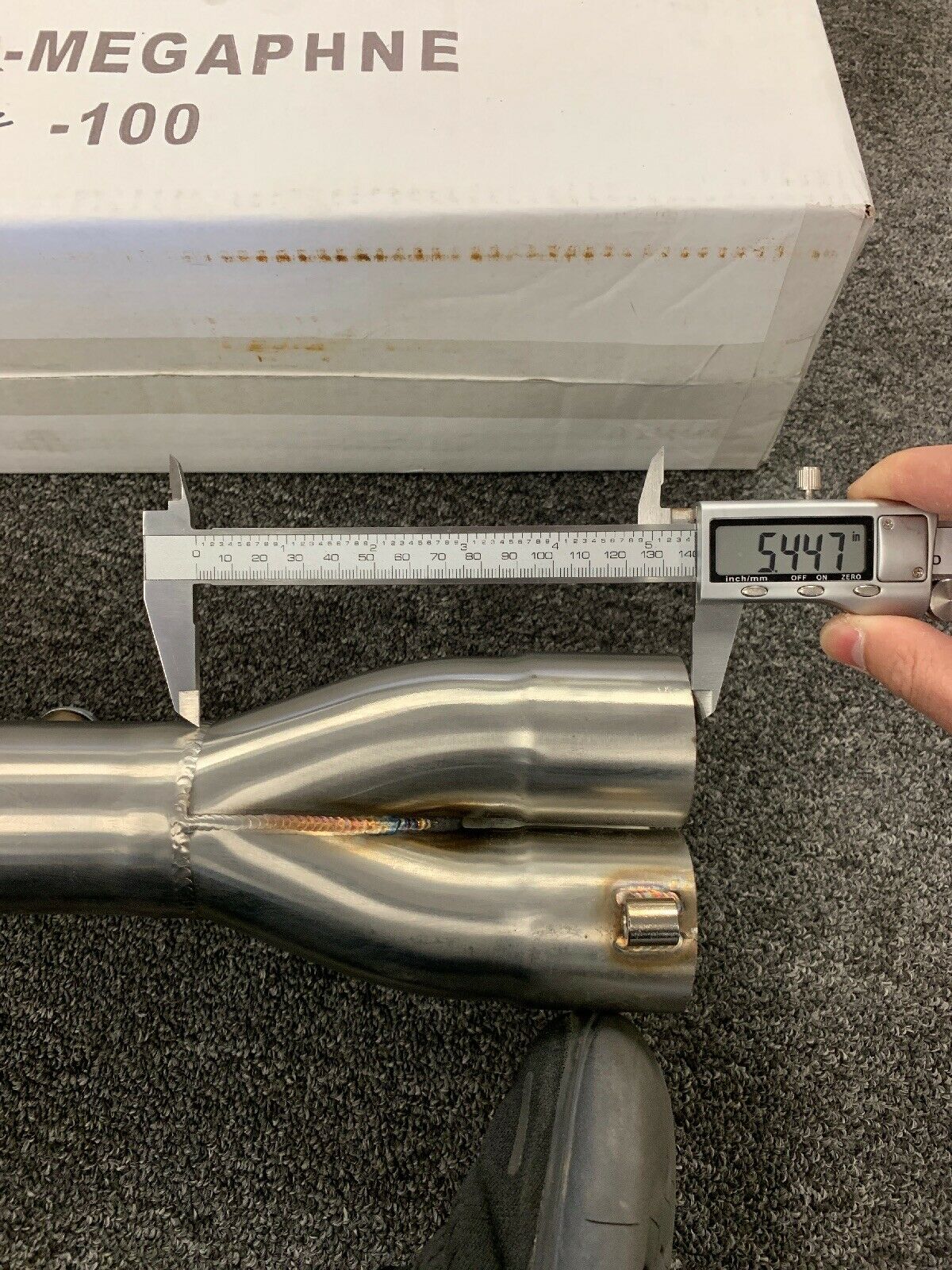

Tri-Y part of collector length is about 5.5" in length.

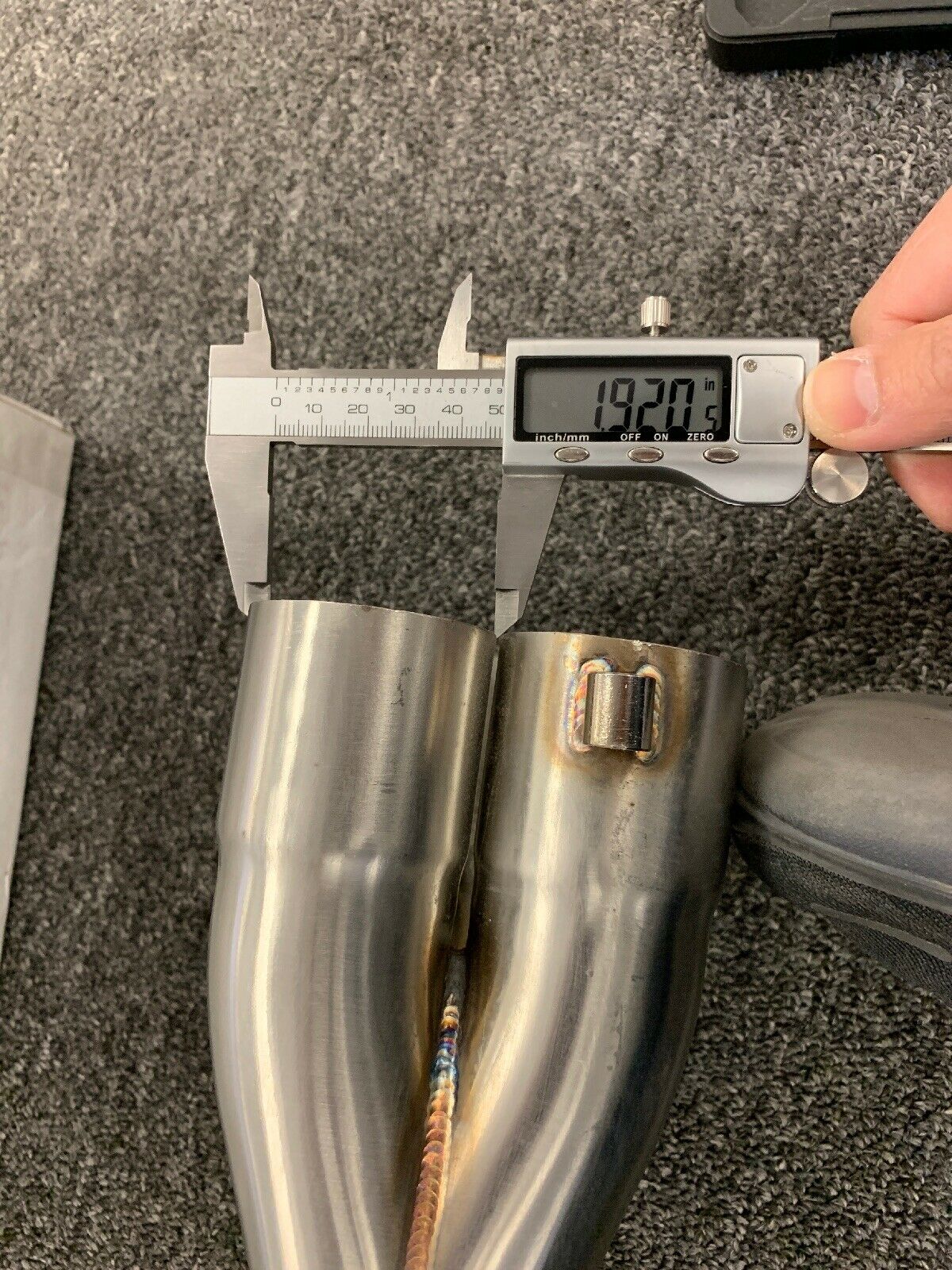

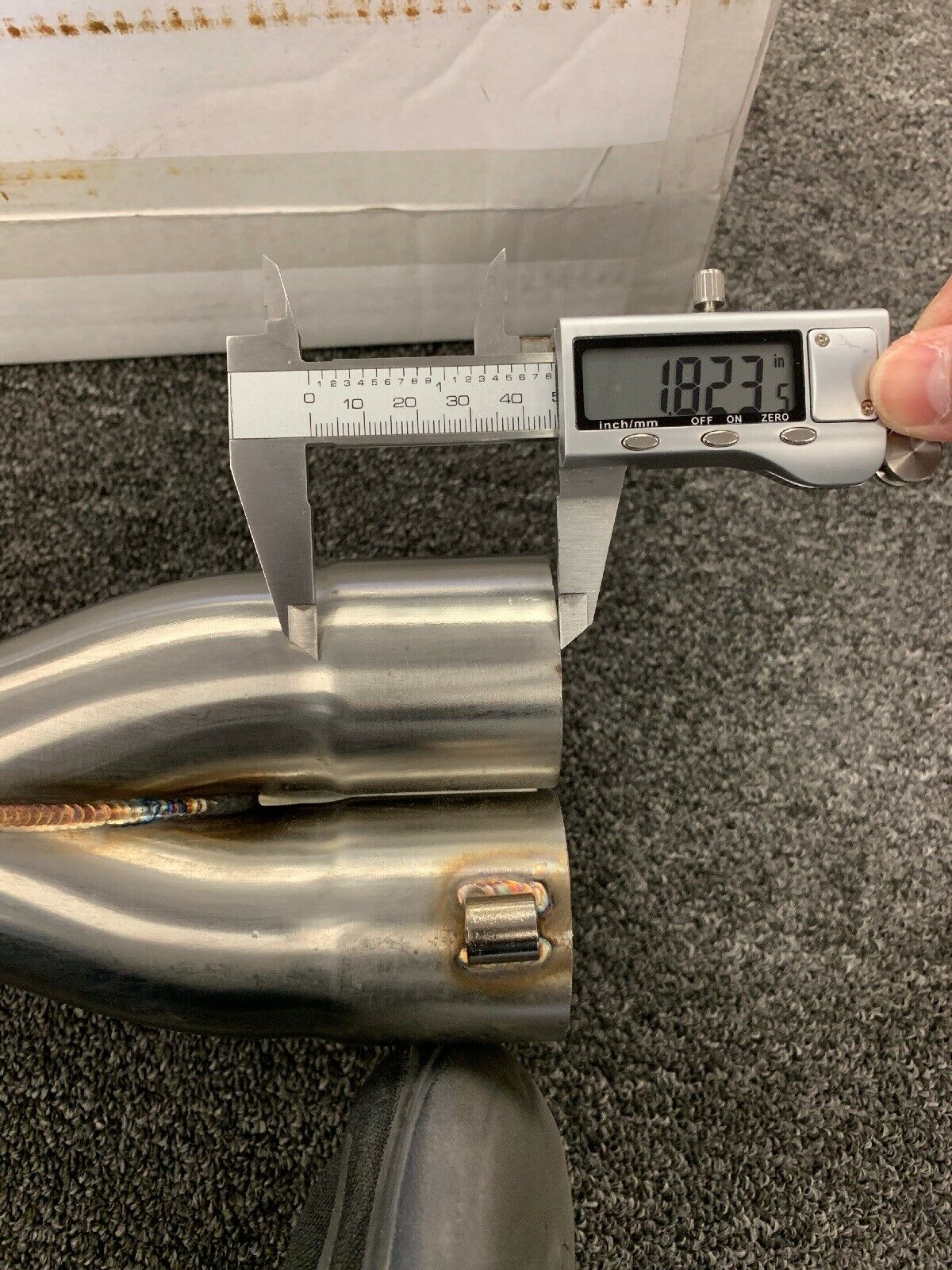

Please review all photos in details....in the photos, we've shown measurements for your reference.

Many uses:  use for fabricator parts, you can cut it to your own application.
